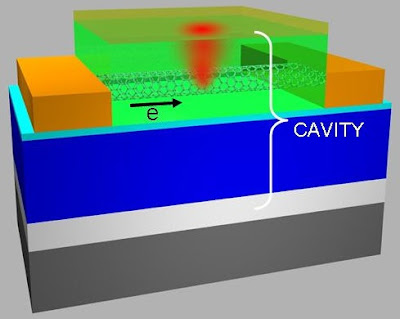

Electric control of the spectrum, direction and efficiency of light-emitting nanotubes (LENs) has been demonstrated by researchers at IBM Corp.'s Thomas J. Watson Research Center, bringing silicon photonics one step closer to reality. IBM Research (Yorktown Heights, N.Y.) previously demonstrated record-breaking silicon optical waveguides and higher electroluminescent efficiency for LENs compared to LEDs. Now, it has put a LEN inside an optical waveguide to achieve directional surface emission, wavelength selectivity and the potential for ultrahigh efficiency. chip. The bottom mirror was made from silver, with a top half-mirror made from gold. Light was emitted from the nanotube in the cavity, which was filled with transparent dielectric.
